Thought i would do a step by step build of my fish room/shed.
Started just before xmas 2011

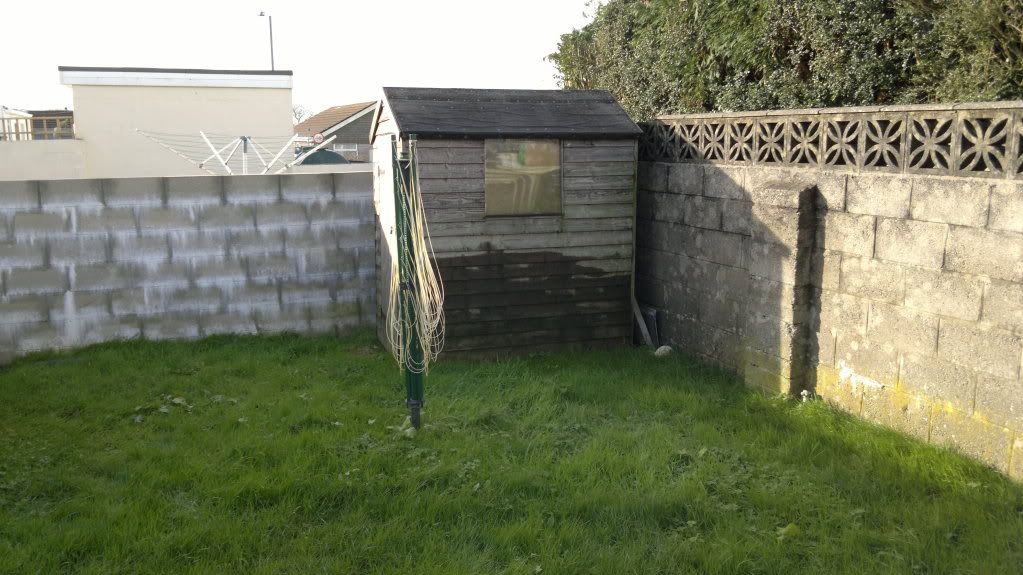

Started with this

A Fishroom/shed is born 17122011201

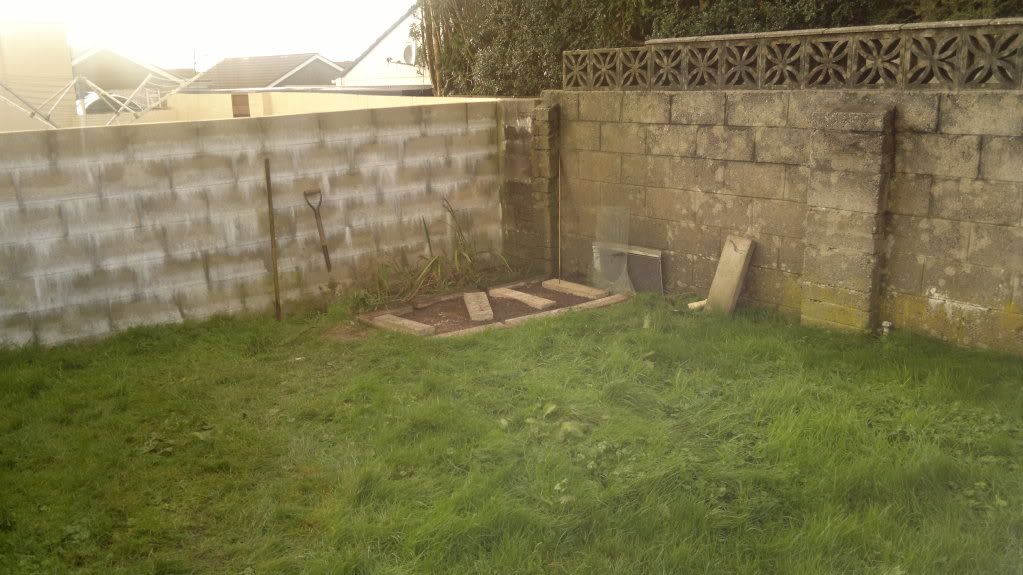

I then removed the old shed

A Fishroom/shed is born 17122011202

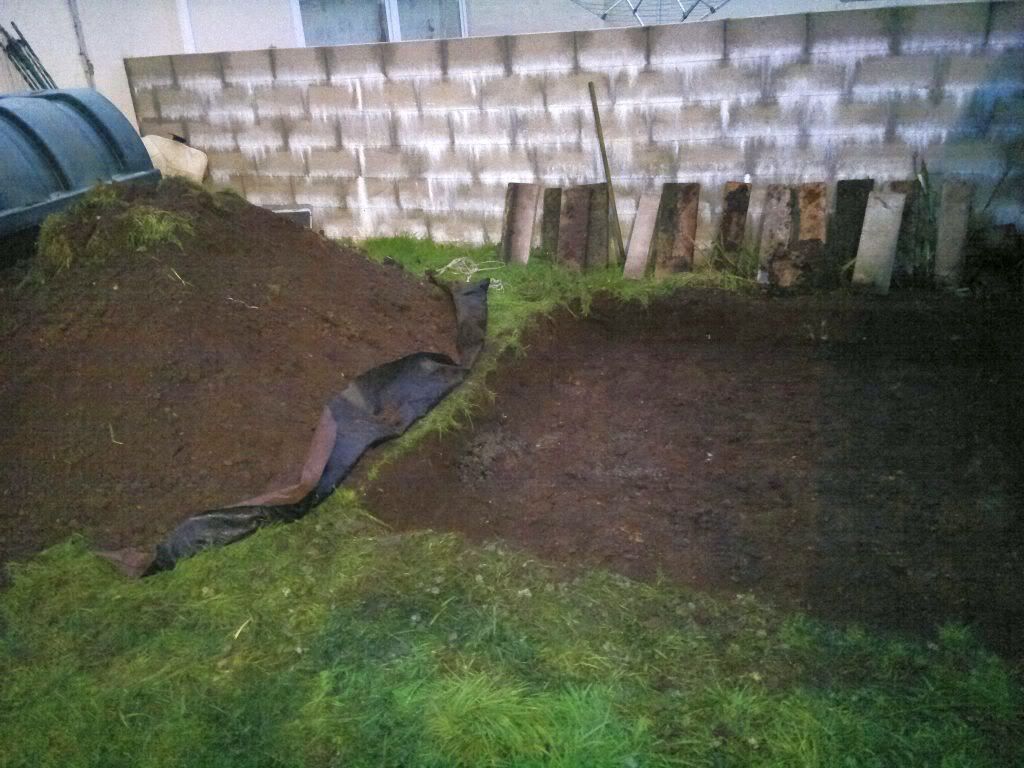

I then started digging removing the soil

A Fishroom/shed is born 22122011211

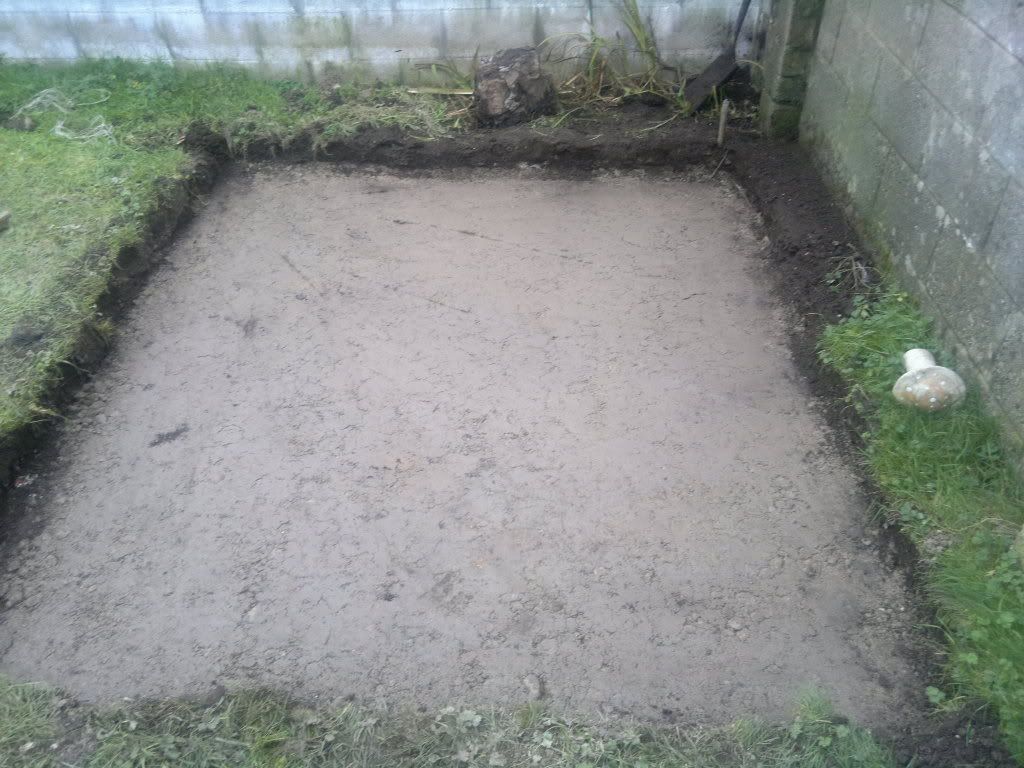

Once the soil was removed down to hard ground i had to make the levels up so the shed sat above soil level.
This involved moving 3Tons of hardcore and plate compacting it in every 2" of depth.

A Fishroom/shed is born 27122011217

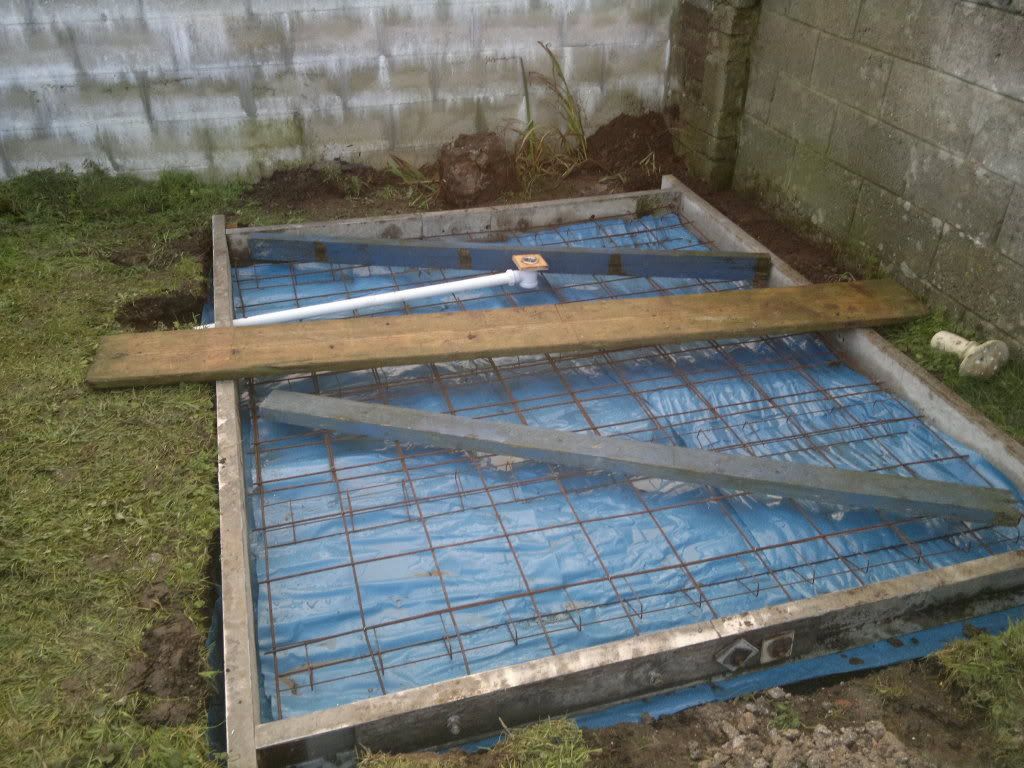

Next part was making the shuttering.
This was made using proper Aluminium shuttering board,bolted in the corners.
I added 50mm of polystyrene floor insulation,then a plastic dampcourse layer,and then reinforcing bar spaced 50mm from the plastic.
I also added a shower waste unit and pipe.

A Fishroom/shed is born 02012012221

I then made the shuttering for the path.

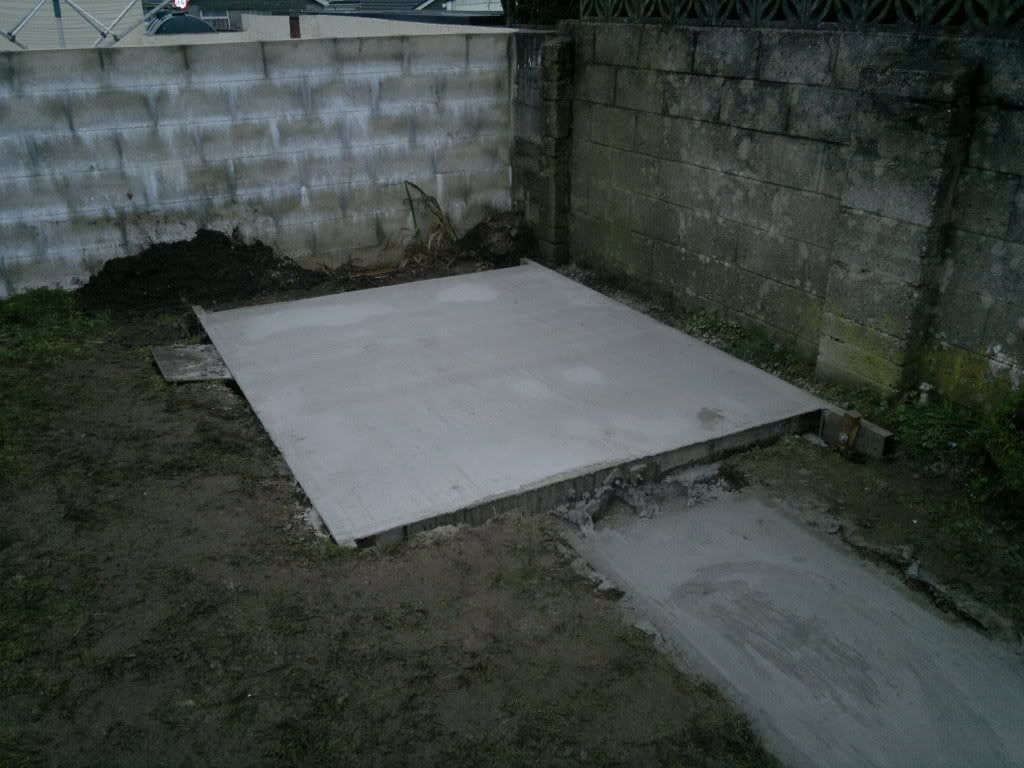

I then brought 1 CuM of concrete,this weighed over 2.25 Tons.
This did the base and some of the path

A Fishroom/shed is born 06012012227

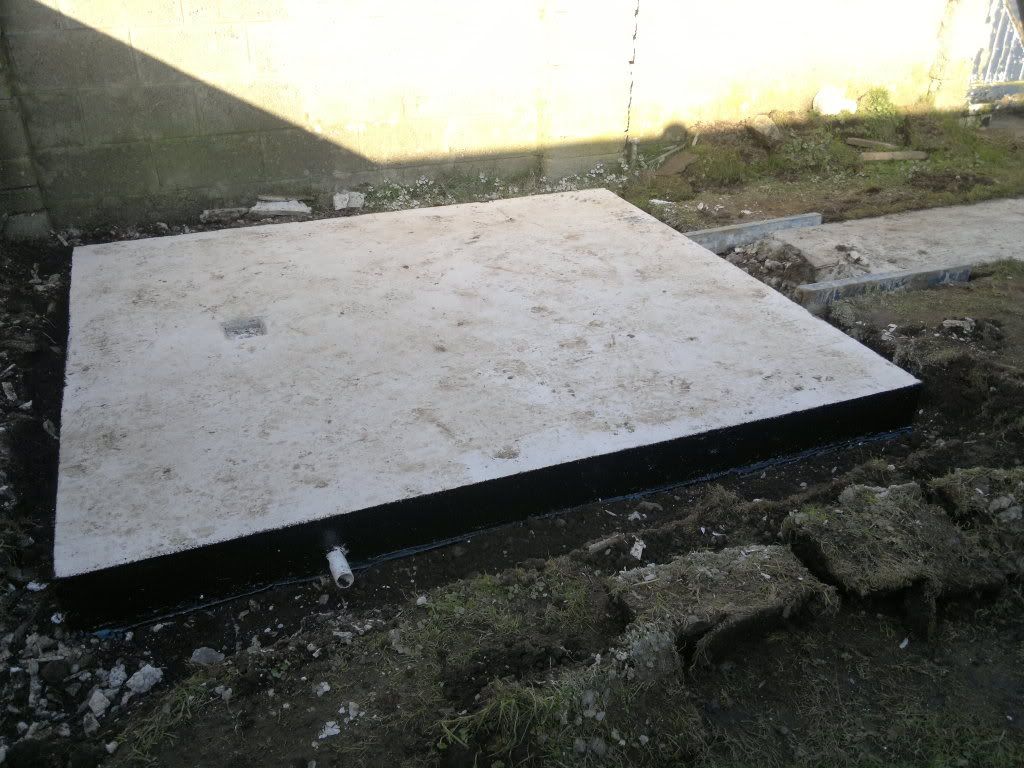

All shuttering removed and concrete edges painted with Bitumen paint to stop damp ingress.
Can also see the waste water pipe exiting the slab.

A Fishroom/shed is born 15012012235



Last edited by nicolaisam on Mon Feb 27, 2012 9:26 pm; edited 1 time in total
Back to top Go down
View user profile
nicolaisam
Juvenile Bristlenose
Juvenile Bristlenose


Number of posts : 64
Location : Uk
Thank You Points : 9
Registration date : 2012-02-24

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyMon Feb 27, 2012 5:20 pm

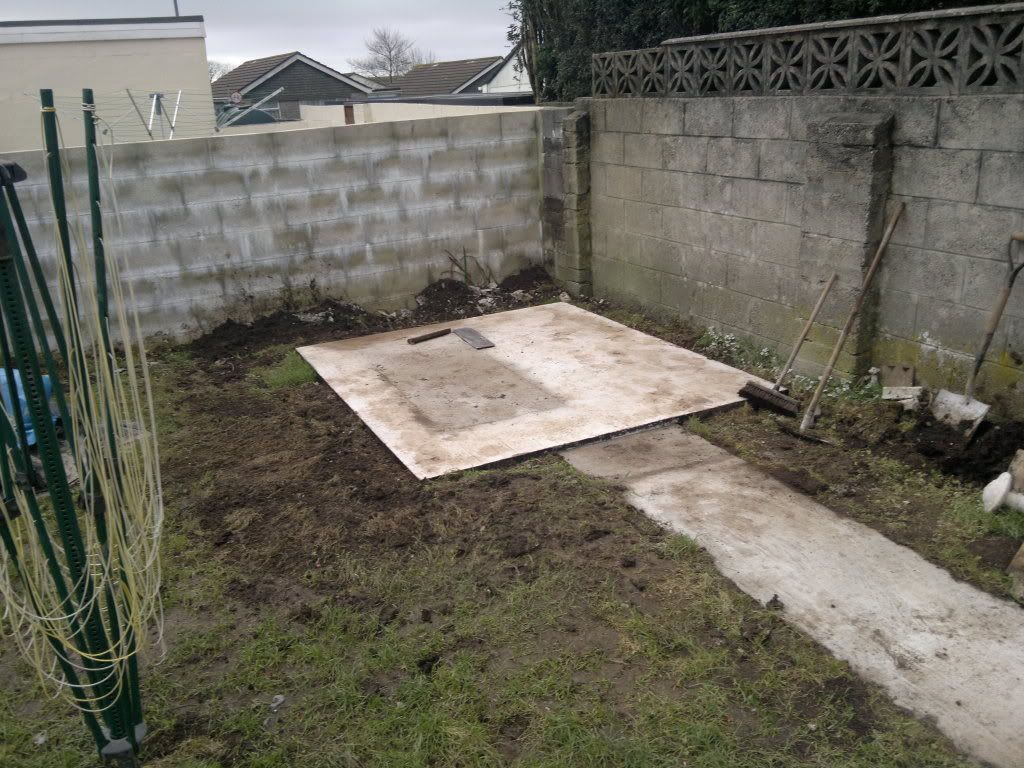

Path finished and all backfilled,Slate was cut and added around the base before backfilling to protect the polystyrene

A Fishroom/shed is born 11

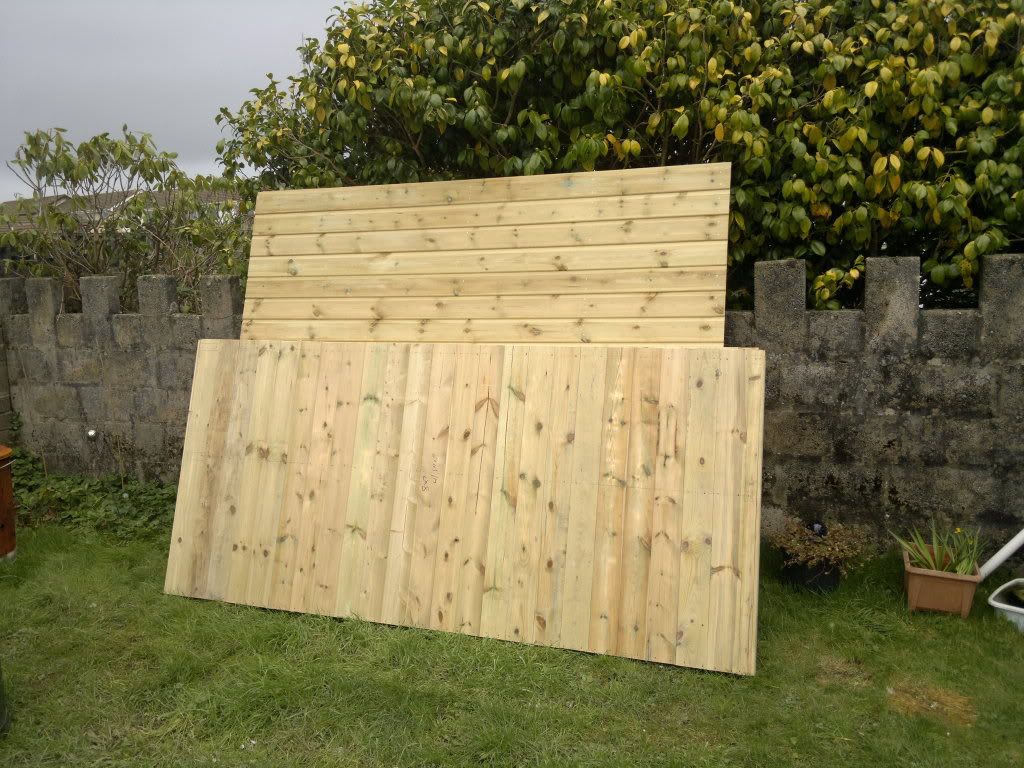

Shed has arrived.
8ftx7ft,3"x"2 timber,16mm shiplap,nailed with stainless nails.
6ft5 inside at lowest point
6ft4 door for me.

A Fishroom/shed is born 12

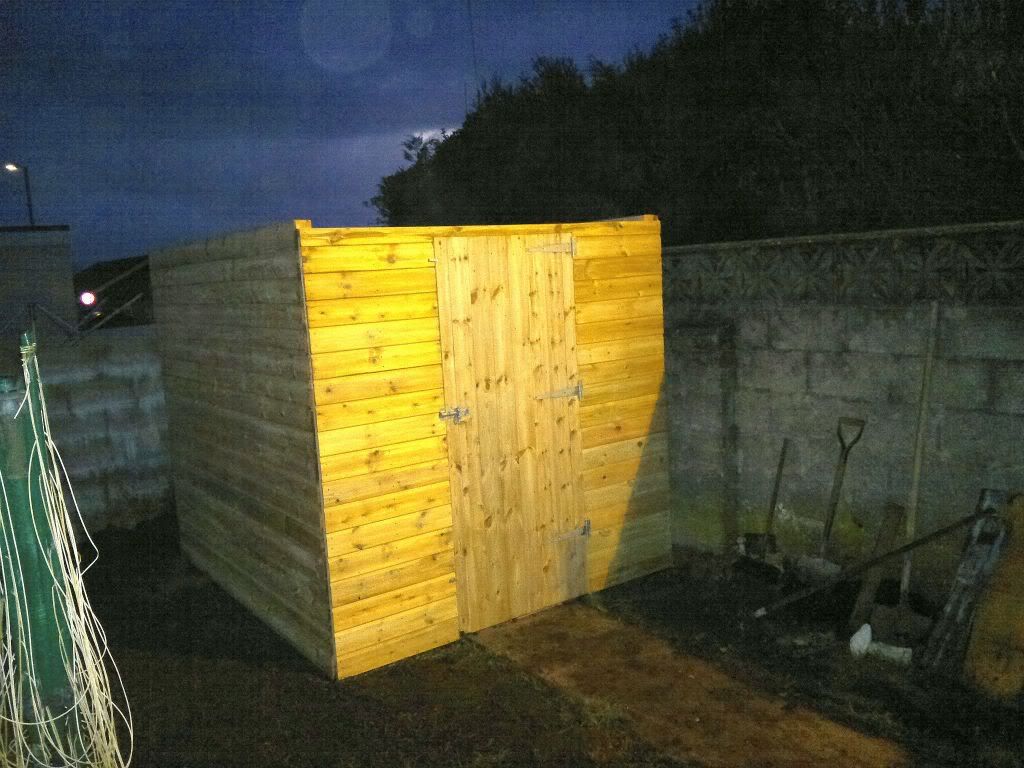

4 walls up

A Fishroom/shed is born 13

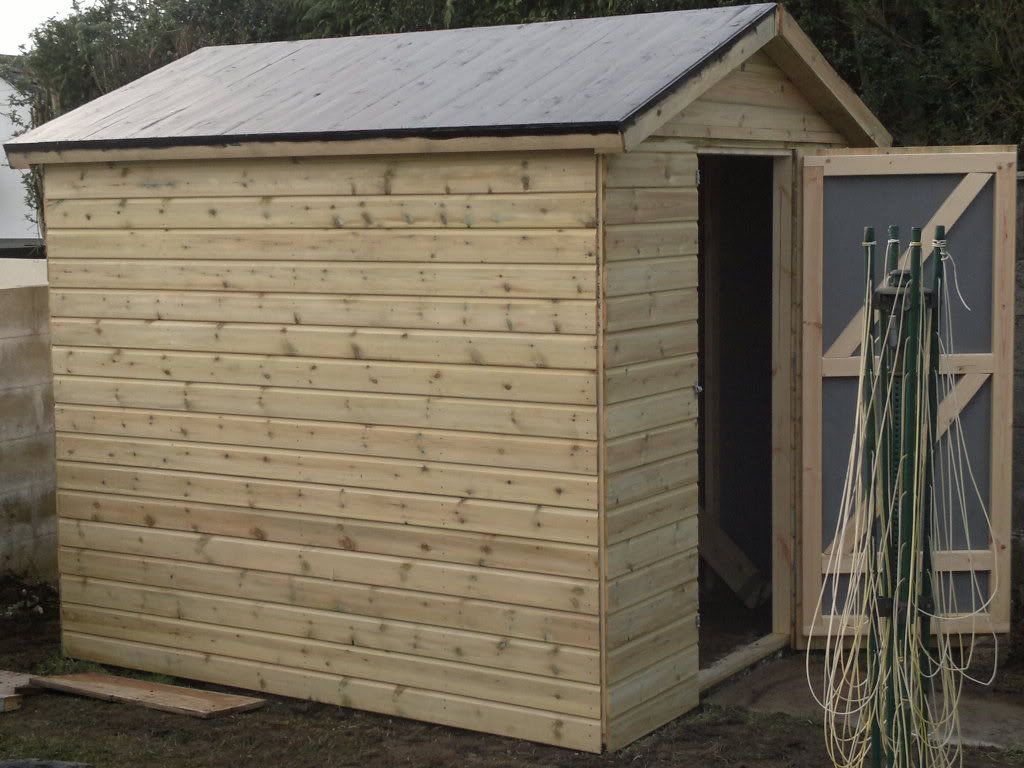

Roof panels fitted and painted with bitumen

A Fishroom/shed is born 14

Back to top Go down
View user profile
nicolaisam
Juvenile Bristlenose
Juvenile Bristlenose


Number of posts : 64
Location : Uk
Thank You Points : 9
Registration date : 2012-02-24

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyMon Feb 27, 2012 5:23 pm

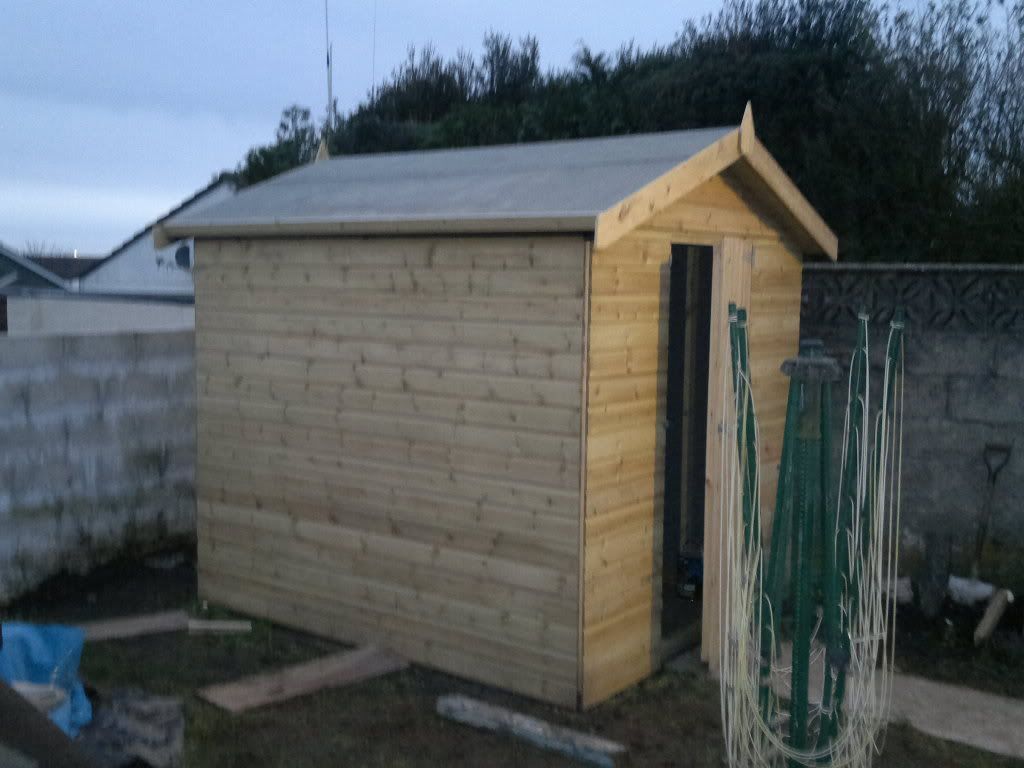

Felt and cover trims fitted

A Fishroom/shed is born 15

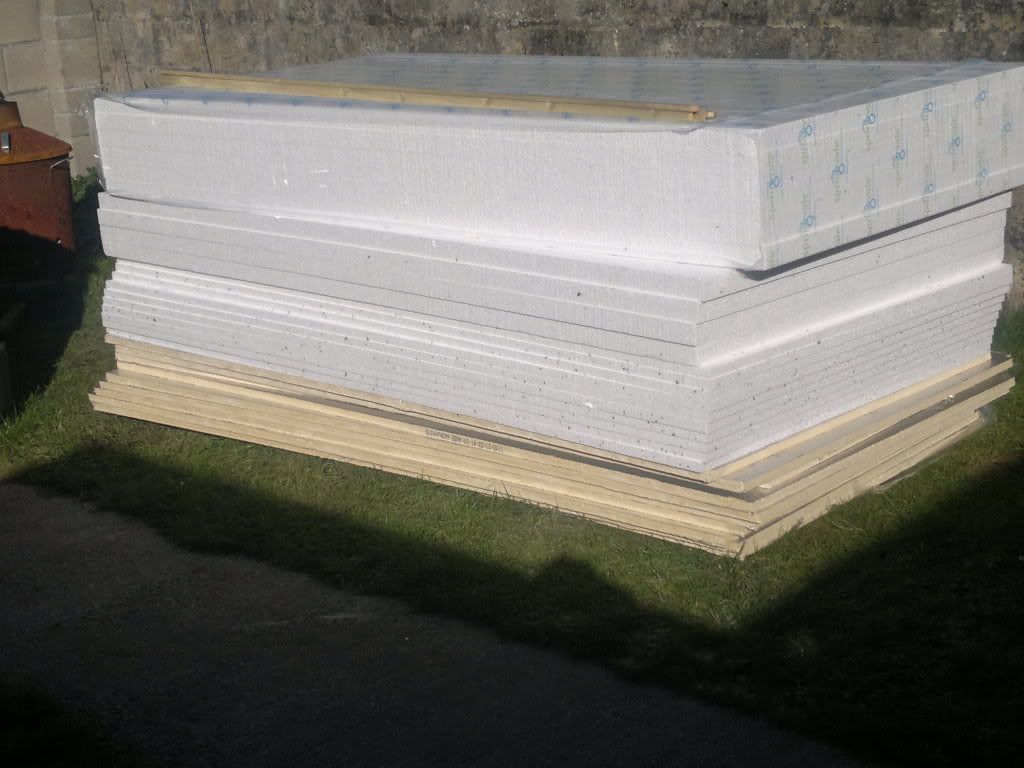

Insulation has arrived.

10 sheets of 25mm polystyrene
10 sheets of 50mm polystyrene
10 sheets of 25mm kingspan

A Fishroom/shed is born 16
Back to top Go down
View user profile
nicolaisam
Juvenile Bristlenose
Juvenile Bristlenose


Number of posts : 64
Location : Uk
Thank You Points : 9
Registration date : 2012-02-24

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyMon Feb 27, 2012 5:26 pm

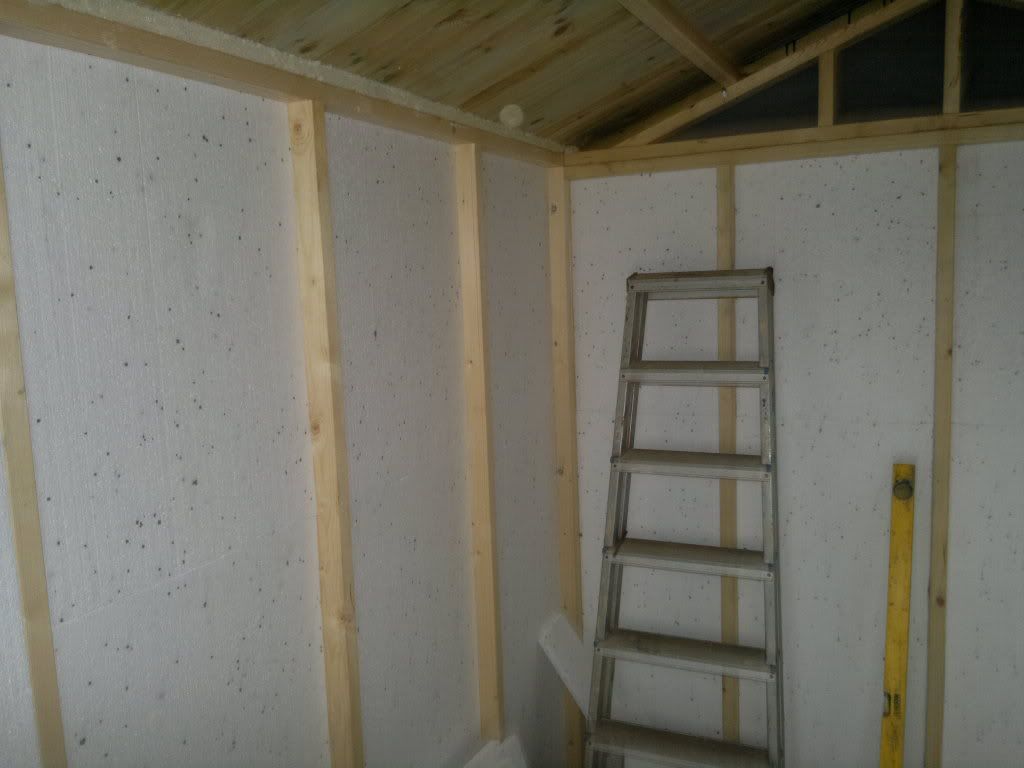

Started fitting 25mm polystyrene

A Fishroom/shed is born 17

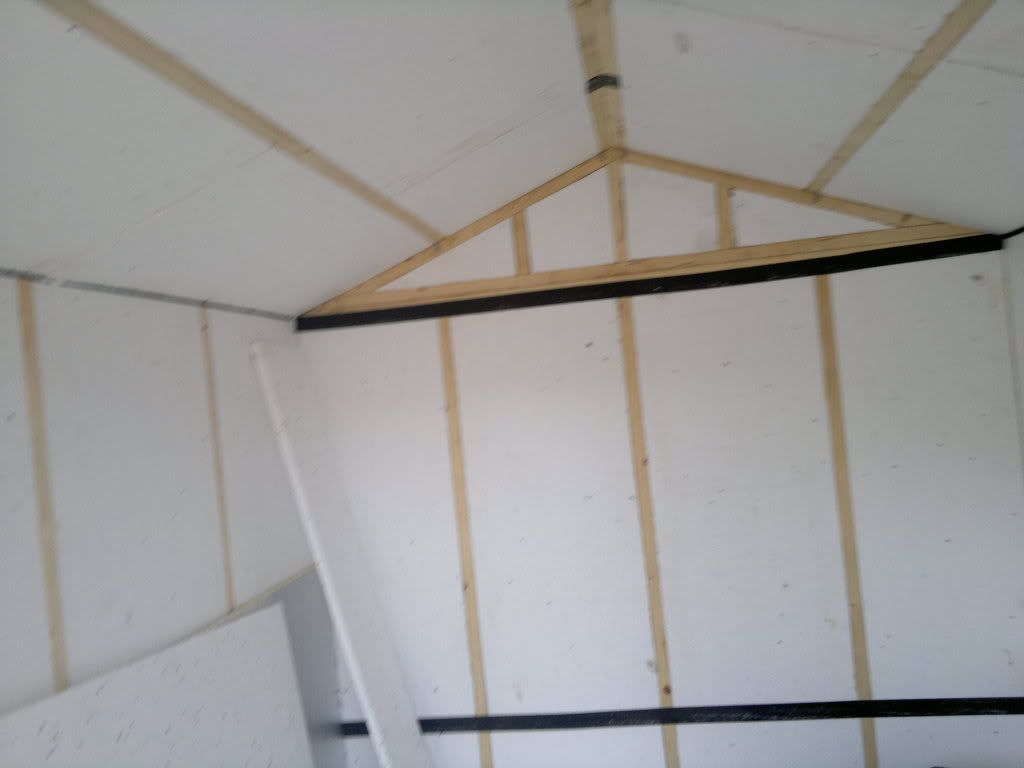

75 mm of polystyrene fitted

A Fishroom/shed is born 19

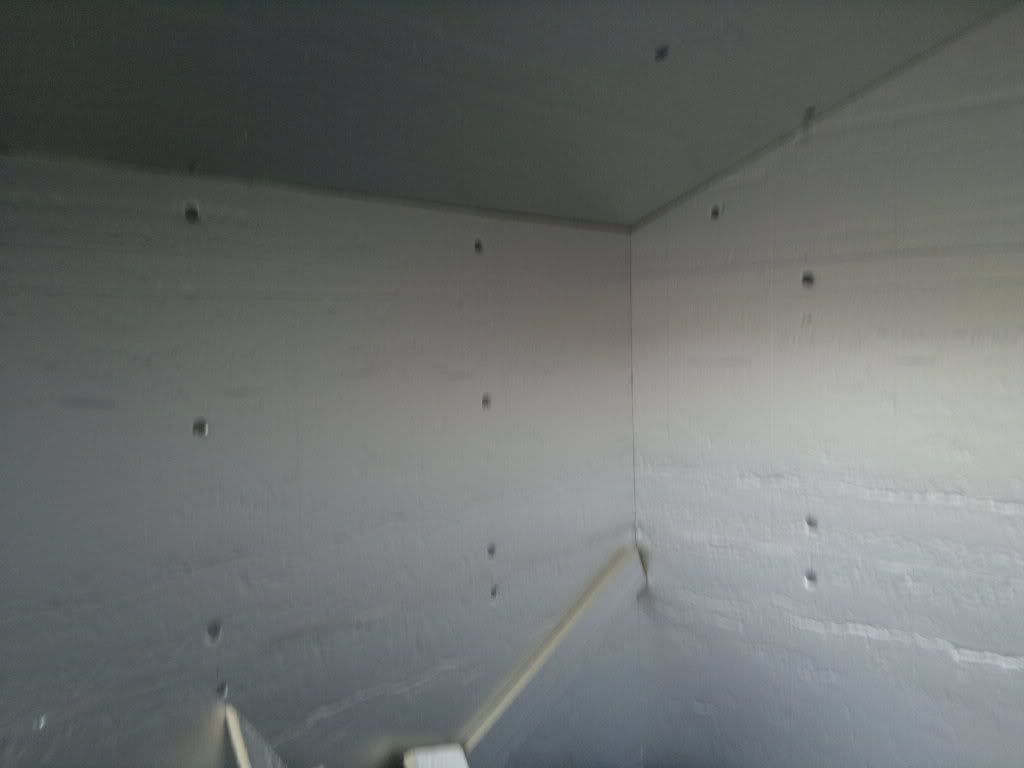

25mm of kingspan covering it all

A Fishroom/shed is born 20

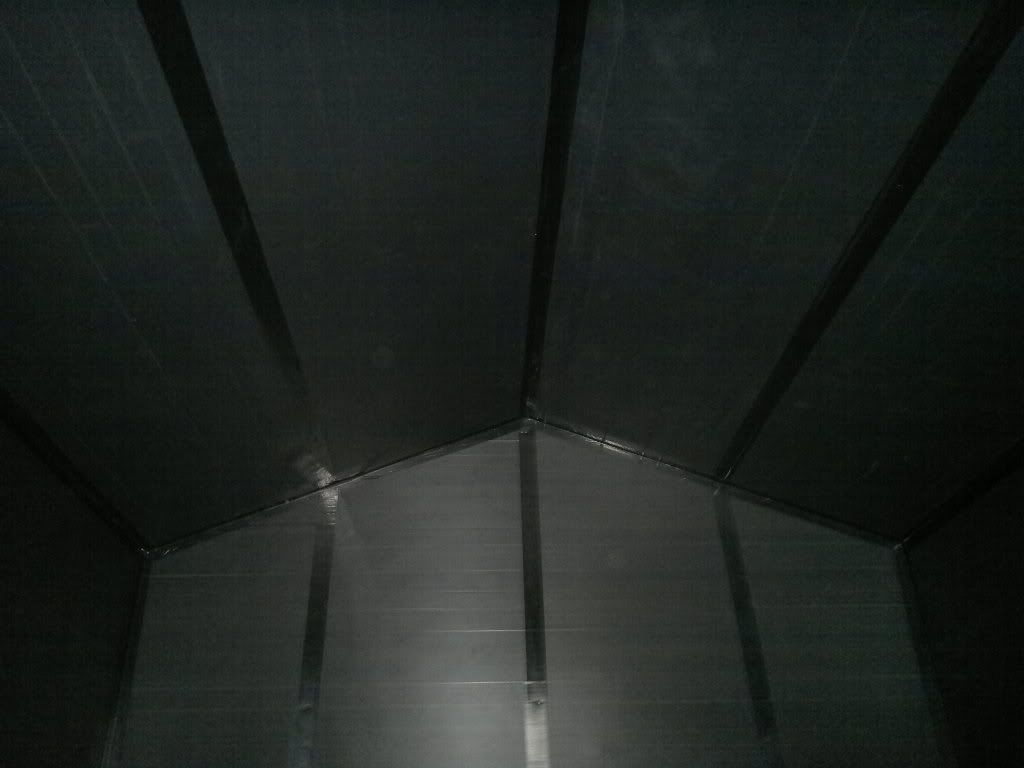

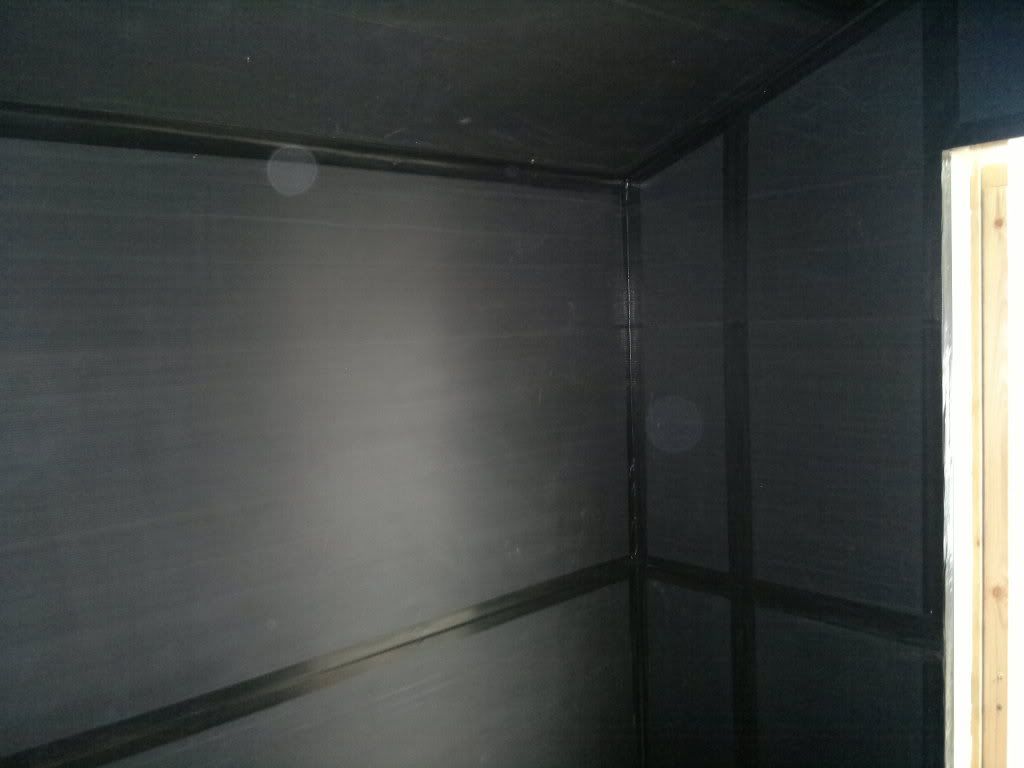

Correx liner fitted and seems taped

A Fishroom/shed is born 25
A Fishroom/shed is born 26



Last edited by nicolaisam on Mon Feb 27, 2012 5:38 pm; edited 1 time in total
Back to top Go down
View user profile
nicolaisam
Juvenile Bristlenose
Juvenile Bristlenose


Number of posts : 64
Location : Uk
Thank You Points : 9
Registration date : 2012-02-24

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyMon Feb 27, 2012 5:30 pm

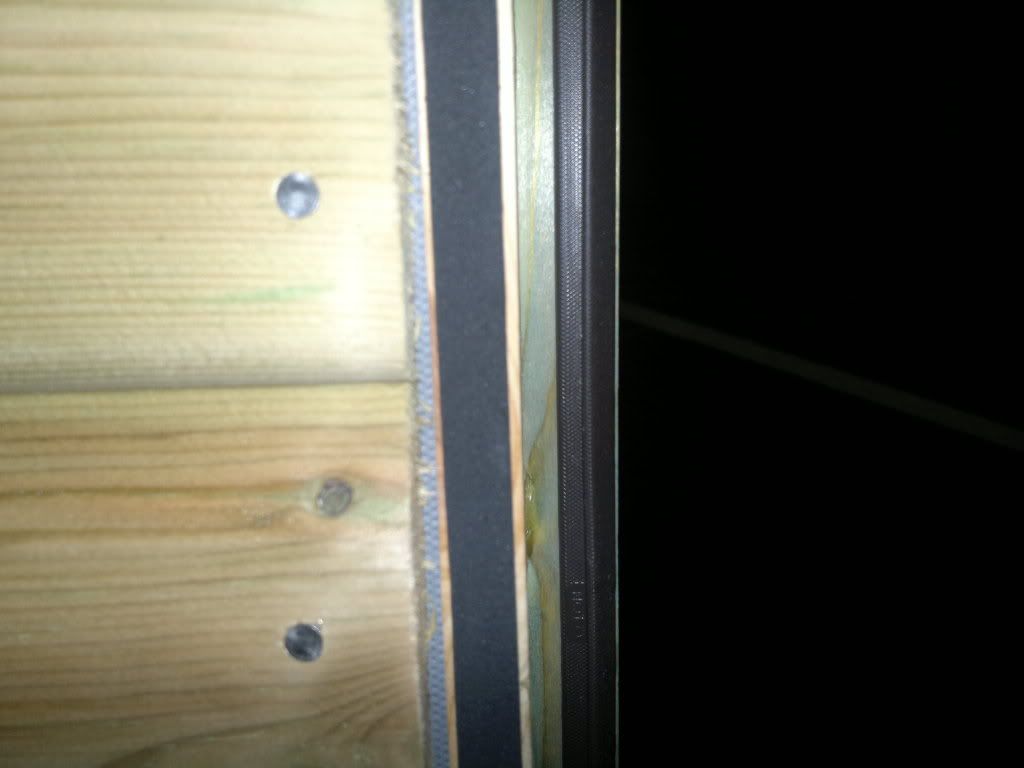

sponge outer door seal fitted.
door shut seal added,its a lip seal that is fitted to extra wood that i brought,i then cut a 3mm wide x 5mm deep slot into it and added a rubber/sponge lip seal

A Fishroom/shed is born 27

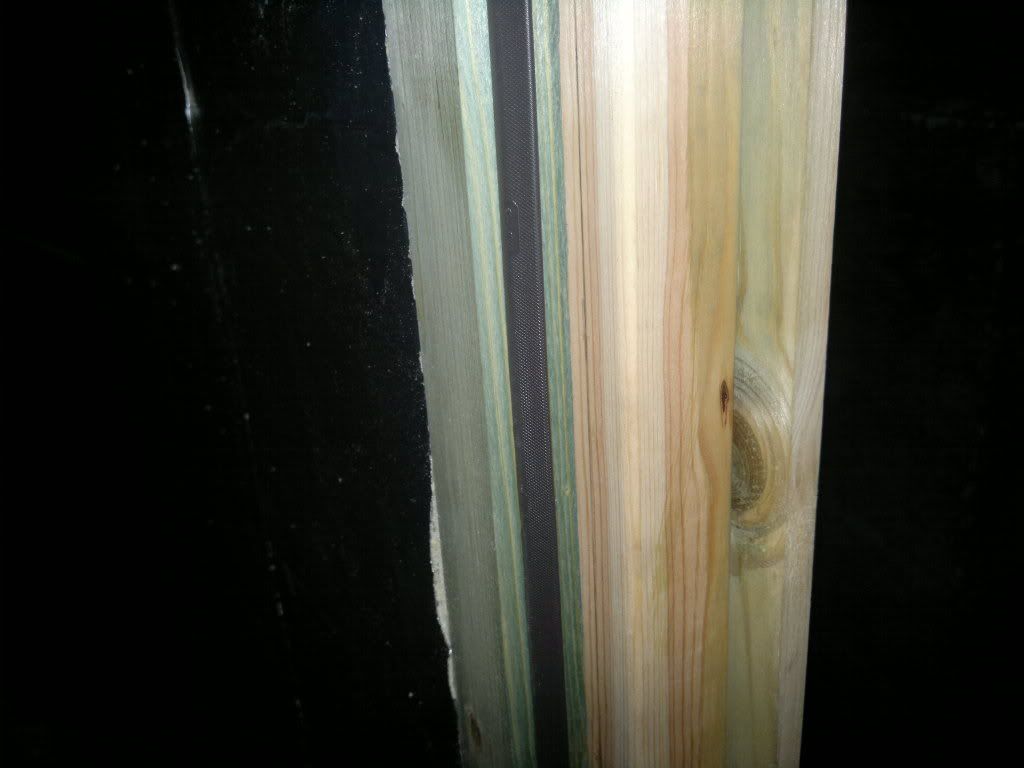

Also added a seal to the door so has 2 lip seals and a sponge seal

A Fishroom/shed is born 28

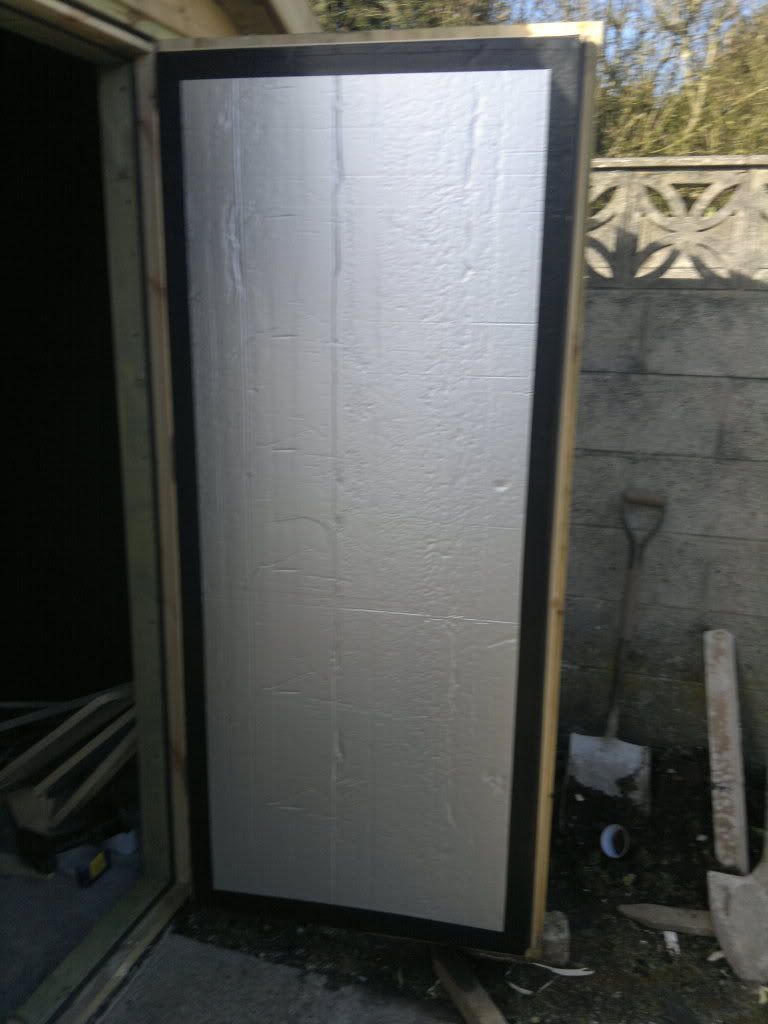

75mm of kingspan on door,taped edges

A Fishroom/shed is born 30

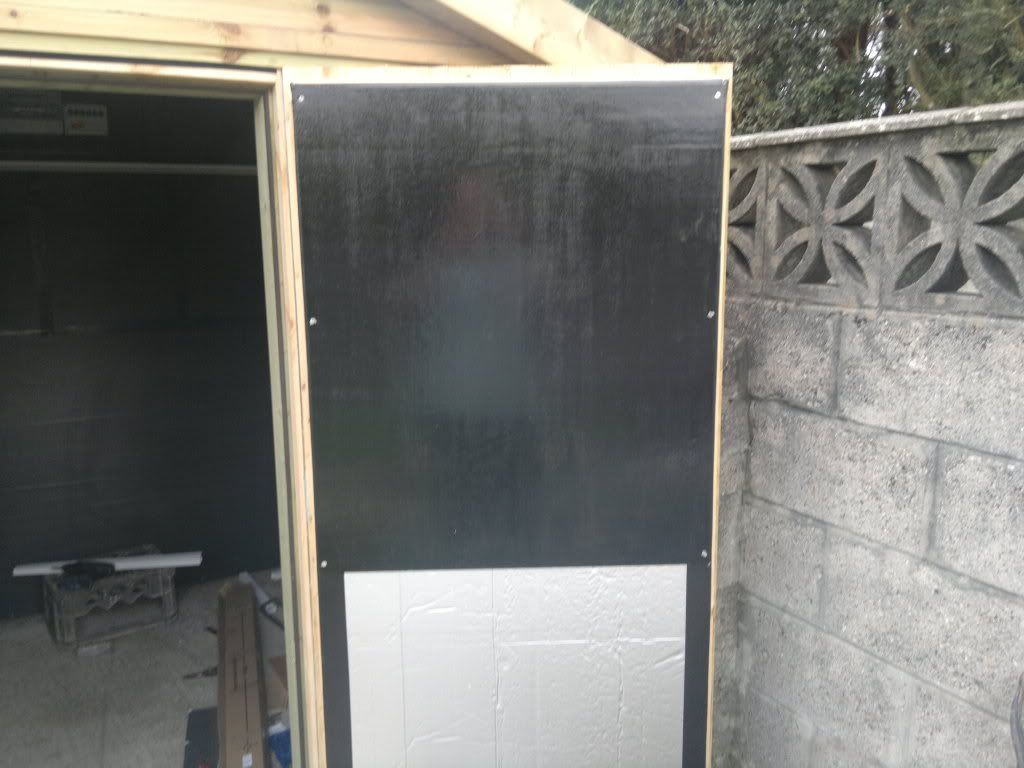

8mm plywood added to door,was painted gloss black to protect the wood

A Fishroom/shed is born 32
Back to top Go down
View user profile
nicolaisam
Juvenile Bristlenose
Juvenile Bristlenose


Number of posts : 64
Location : Uk
Thank You Points : 9
Registration date : 2012-02-24

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyMon Feb 27, 2012 5:35 pm

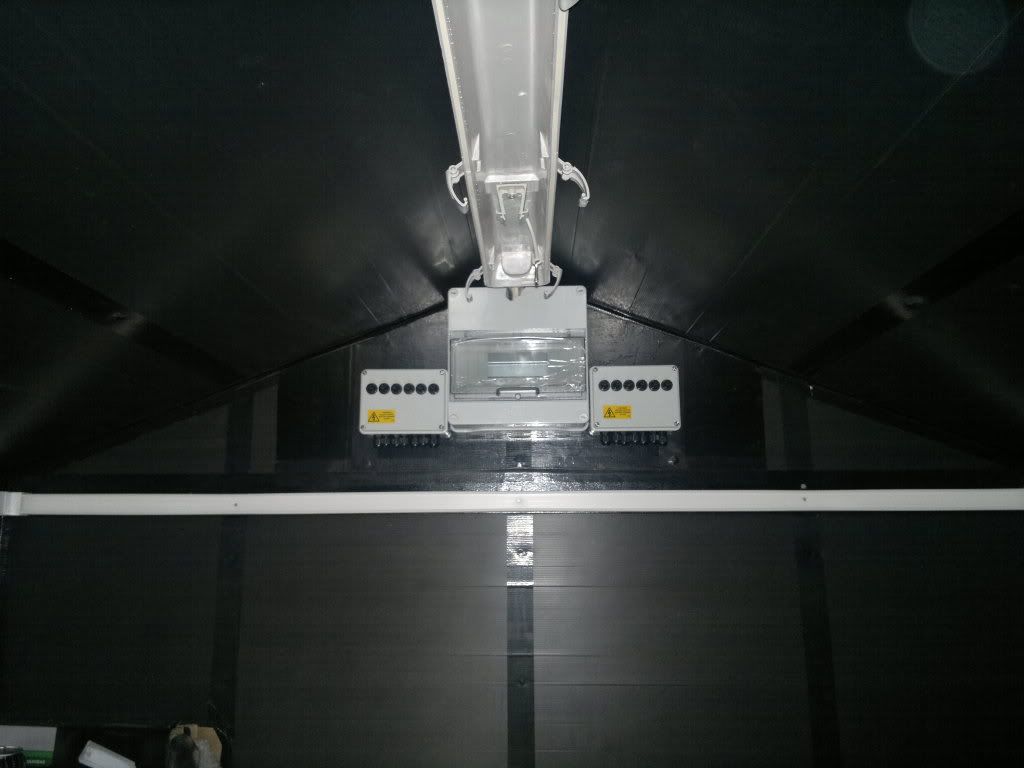

First fit of electrics

weather proof consumer box and 2 waterproof 6 way switches.
5ft weatherproof light,plastic ducting for wires to tanks

A Fishroom/shed is born 33

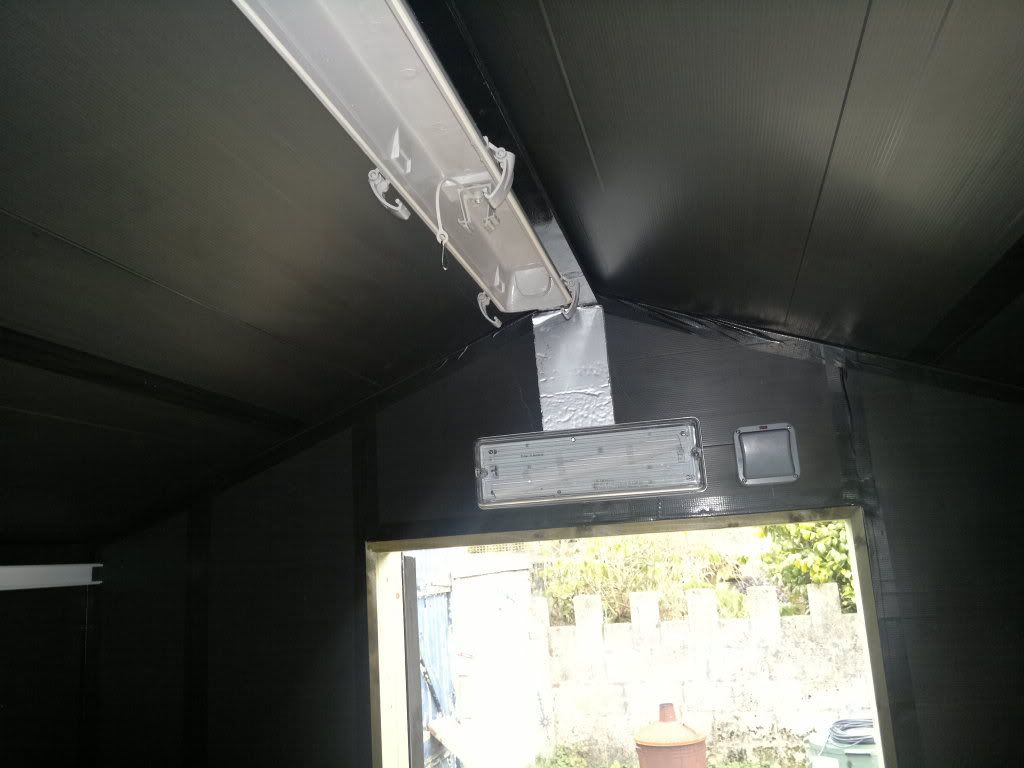

emegency,battery backed up light and weatherproof switch for 5ft light
Plastic ducting for electrics to tanks

A Fishroom/shed is born 34

Back to top Go down
View user profile
nicolaisam
Juvenile Bristlenose
Juvenile Bristlenose


Number of posts : 64
Location : Uk
Thank You Points : 9
Registration date : 2012-02-24

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyMon Feb 27, 2012 5:36 pm

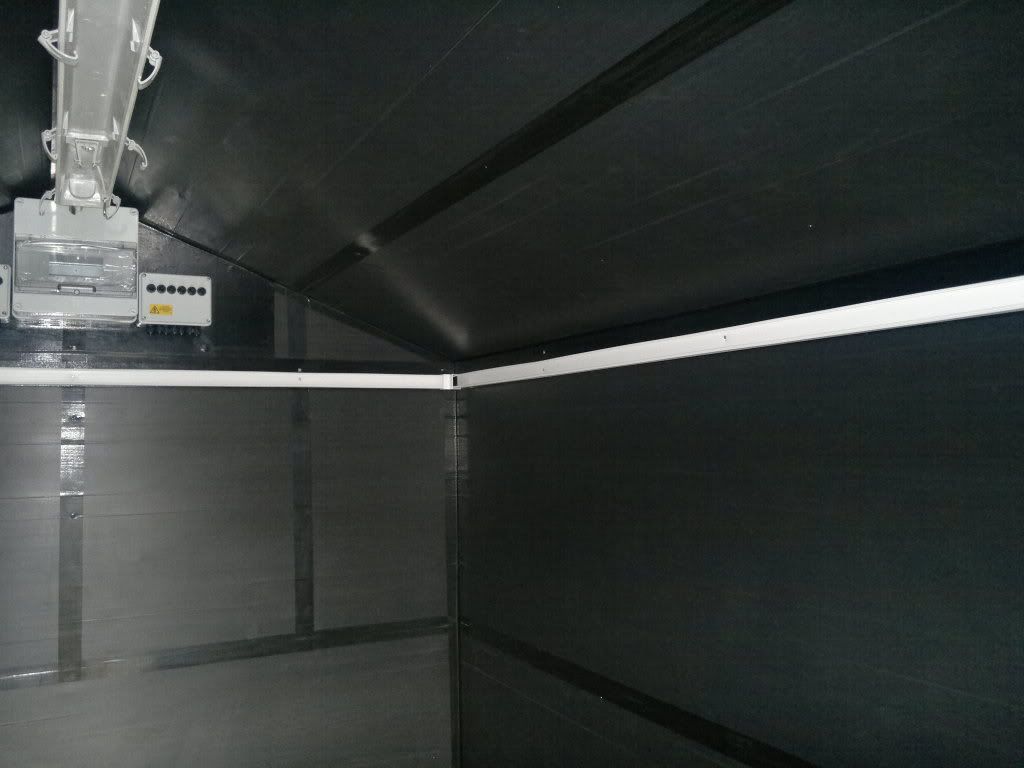

switches and ducting

A Fishroom/shed is born 35
Back to top Go down
View user profile
jim.and
Moderator
Moderator
jim.and

Male Number of posts : 1449
Age : 62
Location : England
Job/hobbies : Warehouse Op
Thank You Points : 107
Registration date : 2010-08-04

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyMon Feb 27, 2012 5:55 pm

Good Job looks amazing.

I'm not jealous No lol!

Back to top Go down
View user profile
Bristlenoses
Moderator
Moderator


Female Number of posts : 992
Age : 54
Location : Mansfield,Nottinghamshire,East Midlands U.K
Job/hobbies : Bristlenoses,photography,animals,nature,drawing and painting,films,books,internet.
Thank You Points : 59
Registration date : 2011-08-26

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyMon Feb 27, 2012 8:02 pm

Wow i am amazed at the work that has gone into this.It is absolutley fabulous,well done you.
Back to top Go down
View user profile
Jeff
Large Bristlenose
Large Bristlenose
Jeff

Male Number of posts : 307
Age : 49
Location : Calgary AB Canada
Job/hobbies : Semi-retired / Lord of the Rings Online
Humor : dry
Thank You Points : 17
Registration date : 2011-09-07

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyMon Feb 27, 2012 9:17 pm

Just incredible! Thank you for sharing A Fishroom/shed is born 1153438146
Back to top Go down
View user profile
Doug
Moderator
Moderator
Doug

Male Number of posts : 3128
Age : 33
Location : Adelaide, South Australia
Job/hobbies : Aquatic ecologist/genetisist
Humor : yes please :)
Thank You Points : 198
Registration date : 2010-05-08

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyMon Feb 27, 2012 11:35 pm

Solid effort! Love all the insulation. going to save you heaps in the long run!

_________________
Doug's Bristlenose eBook -
The number one source of Bristlenose information and the most detailed breeding guide avaliable
3rd edition LOADS OF INFORMATION, PICS, DIAGRAMS AND BRISTLENOSE GOODNESS

GO TO www.keepingandbreedingbristlenose.com FOR YOUR COPY!!

Like my book - why not "Like" it on Facebook!
https://www.facebook.com/pages/Keeping-and-Breeding-Bristlenose-Catfish/142417842474993
Click here to vote for Bristlenose World
Back to top Go down
View user profile
BigBrotherG
Juvenile Bristlenose
Juvenile Bristlenose
BigBrotherG

Male Number of posts : 73
Age : 31
Location : Constanta (ROMANIA)
Job/hobbies : Maritime Officer(3/O)/BN
Thank You Points : 0
Registration date : 2011-11-27

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyTue Feb 28, 2012 12:46 am

A Fishroom/shed is born 3335189316 A Fishroom/shed is born 3335189316 A Fishroom/shed is born 3335189316 Amazing!! Congratulations! I think you spent a lot of time for the fish room! Everything looks very proffesional!! I'm thinking to make one same as yours in a few years!! Cheers and congrats againg!!!
Back to top Go down
View user profile
kfenk
Moderator
Moderator
kfenk

Male Number of posts : 1432
Age : 34
Location : Adelaide, South Australia
Thank You Points : 79
Registration date : 2009-11-09

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyTue Feb 28, 2012 2:11 am

If i was a handy man i would probably understand what you wrote. But in the end even tho i read it all i just enjoyed the pretty pictures Very Happy Cracker of a job mate Good Job Now if only i could have my own house and get somebody to build me one of my own Smile

_________________
A Fishroom/shed is born Death_Can_Headbang_by_ItchyBarracudaA Fishroom/shed is born KarlgifA Fishroom/shed is born Death_Can_Headbang_by_ItchyBarracuda
Back to top Go down
View user profile
mmccannon
Large Bristlenose
Large Bristlenose
mmccannon

Number of posts : 346
Age : 49
Location : Hungary
Thank You Points : 17
Registration date : 2011-05-16

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyTue Feb 28, 2012 9:33 am

Wow! Keep us updated with your amazing project!

Do you take orders for such sheds? A Fishroom/shed is born 3813960834
Back to top Go down
View user profile
Mooo
Moderator
Moderator
Mooo

Female Number of posts : 957
Age : 57
Location : Jervis Bay, NSW, Australia
Job/hobbies : Retired
Humor : What?
Thank You Points : 36
Registration date : 2009-12-14

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyTue Feb 28, 2012 12:35 pm

What an awesome project,,,I agree, keep us posted won't you...
Back to top Go down
View user profile http://www.livefish.com.au
ziggee
Juvenile Bristlenose
Juvenile Bristlenose


Male Number of posts : 123
Age : 73
Location : Southampton
Job/hobbies : Retired/Cichlids/BN's/Motor sports.
Humor : Broad
Thank You Points : 8
Registration date : 2011-06-26

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyTue Feb 28, 2012 5:47 pm

Nice to see you sharing your project on this forum Sam, keep the pix coming. A Fishroom/shed is born 3675536318
Roger.
Back to top Go down
View user profile
nicolaisam
Juvenile Bristlenose
Juvenile Bristlenose


Number of posts : 64
Location : Uk
Thank You Points : 9
Registration date : 2012-02-24

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyThu Mar 01, 2012 6:55 pm

Steel has arrived for the racking.
Hopefully try and get the electrics wired this weekend

Back to top Go down
View user profile
Jeff
Large Bristlenose
Large Bristlenose
Jeff

Male Number of posts : 307
Age : 49
Location : Calgary AB Canada
Job/hobbies : Semi-retired / Lord of the Rings Online
Humor : dry
Thank You Points : 17
Registration date : 2011-09-07

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyThu Mar 01, 2012 6:59 pm

Good luck! Pls keep sharing pics. Are you going to wire it yourself? I fear wiring *shiver*
Back to top Go down
View user profile
ziggee
Juvenile Bristlenose
Juvenile Bristlenose


Male Number of posts : 123
Age : 73
Location : Southampton
Job/hobbies : Retired/Cichlids/BN's/Motor sports.
Humor : Broad
Thank You Points : 8
Registration date : 2011-06-26

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyThu Mar 01, 2012 7:33 pm

nicolaisam wrote:
Steel has arrived for the racking.
Hopefully try and get the electrics wired this weekend

What steel are you using Sam? is it already cut to size and ready to assemble or are you going to
construct to your own design.?
Back to top Go down
View user profile
nicolaisam
Juvenile Bristlenose
Juvenile Bristlenose


Number of posts : 64
Location : Uk
Thank You Points : 9
Registration date : 2012-02-24

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyThu Mar 01, 2012 7:51 pm

ziggee wrote:
nicolaisam wrote:
Steel has arrived for the racking.
Hopefully try and get the electrics wired this weekend

What steel are you using Sam? is it already cut to size and ready to assemble or are you going to
construct to your own design.?

Racks were designed by me and will be made by me,I used to be a welder fabricator and have a rack in my garage that i made. Laughing

i am using 50x25mm x3mm RHS and 40x40x4mm angle for the main frame

I cut most of the steel to length today,It is now in my workshop ready to tack and weld.


Back to top Go down
View user profile
nicolaisam
Juvenile Bristlenose
Juvenile Bristlenose


Number of posts : 64
Location : Uk
Thank You Points : 9
Registration date : 2012-02-24

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptyThu Mar 01, 2012 7:52 pm

Jeff wrote:
Good luck! Pls keep sharing pics. Are you going to wire it yourself? I fear wiring *shiver*

I will be wiring most of it,my brother is also helping.
Thanks
Back to top Go down
View user profile
nicolaisam
Juvenile Bristlenose
Juvenile Bristlenose


Number of posts : 64
Location : Uk
Thank You Points : 9
Registration date : 2012-02-24

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptySat Mar 03, 2012 9:03 am

Started the wiring yesterday.
hopefully get the main power cable in today Very Happy
Seemed to work hard yesterday and not get much done.
need to drill 2x30mm holes through the garage to get the cable ducting and water pipe through.
Main cable is a 6mm cable, twin and earth(3 core)

water supply is a 15mm speedfit plastic pipe.

All pipes and supply cable will be underground.



Back to top Go down
View user profile
nicolaisam
Juvenile Bristlenose
Juvenile Bristlenose


Number of posts : 64
Location : Uk
Thank You Points : 9
Registration date : 2012-02-24

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptySat Mar 03, 2012 8:43 pm

Quick update.

2x30mm holes turned into 4.
the ones in the garage were through 14" of solid concrete,2 in the shed were through the 6" slab.took 5 hrs to drill the 4 holes Shocked

I also dug the trench and fitted the ducting for the cable and 15mm water pipe,the same trench will also have the waste water pipe in aswell,Trench is 600mm deep


A Fishroom/shed is born 36

A Fishroom/shed is born 37

A Fishroom/shed is born 38

A Fishroom/shed is born 39

A Fishroom/shed is born 40

My brother wiring the consumer unit

A Fishroom/shed is born 41

Back to top Go down
View user profile
ziggee
Juvenile Bristlenose
Juvenile Bristlenose


Male Number of posts : 123
Age : 73
Location : Southampton
Job/hobbies : Retired/Cichlids/BN's/Motor sports.
Humor : Broad
Thank You Points : 8
Registration date : 2011-06-26

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptySun Mar 04, 2012 8:40 am

Wont be long now Sam. Well done 0n your project so far.
By the way, are you getting tanks custom made, or are you buying off the shelf?
Roger.
Back to top Go down
View user profile
nicolaisam
Juvenile Bristlenose
Juvenile Bristlenose


Number of posts : 64
Location : Uk
Thank You Points : 9
Registration date : 2012-02-24

A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born EmptySun Mar 04, 2012 9:51 am

ziggee wrote:
Wont be long now Sam. Well done 0n your project so far.
By the way, are you getting tanks custom made, or are you buying off the shelf?
Roger.

Thanks for the comments Roger. Laughing

One rack is for plecs and cory,i am having all custom sized tanks for that side.
each rack will have 1 x 36x18x10" tall,1 x 2ftx18x10 and 2 x 18x12x10 and there are 4 shelves that side so a total of 16 tanks.

Other side has only 3 shelves and will have 2x48x15x15,2x24x15x15,1x24x18x18 and 3x18x12x12 and 2x24x12x12, this rack will also be able to take 18" tall tanks on the top shelf.and all shelves will accept 18" width tanks.This side will give 9 or 10 tanks depending what i decide to use.I have all the tanks for this rack,and extras.lol

Custom tanls are being made by DC aquariums,and are an excellent price,I have ordered 19 tanks from them Laughing
Back to top Go down
View user profile
Sponsored content




A Fishroom/shed is born Empty
PostSubject: Re: A Fishroom/shed is born   A Fishroom/shed is born Empty

Back to top Go down

A Fishroom/shed is born
Back to top
Page 1 of 5Go to page : 1, 2, 3, 4, 5  Next
 Similar topics
-
» Bboy Born's style
» my shed & probs
» In the beginning: Madelman is born
» A SUCKER IS BORN EVERY DAY !!!
» Fish room build

Permissions in this forum:You cannot reply to topics in this forum
Bristlenose World :: Bristlenose Main Area :: The D.I.Y Room-
Jump to:
